Rear spar with 4 of 5 brackets clecoed (this is the only pic I currently have of the rear-spar - it is currently riveted and sitting awaiting assembly with the ribs, stringers, etc.):
Match-drilling spar caps to front spar - crap there are a lot of holes that Vans didn't drill (somewhere around 180-200, just for 2 spar caps):
Riveted spar caps and doubler to front spar:
Other side:
Closeup:
That was a LOT of holes, deburring and rivets!

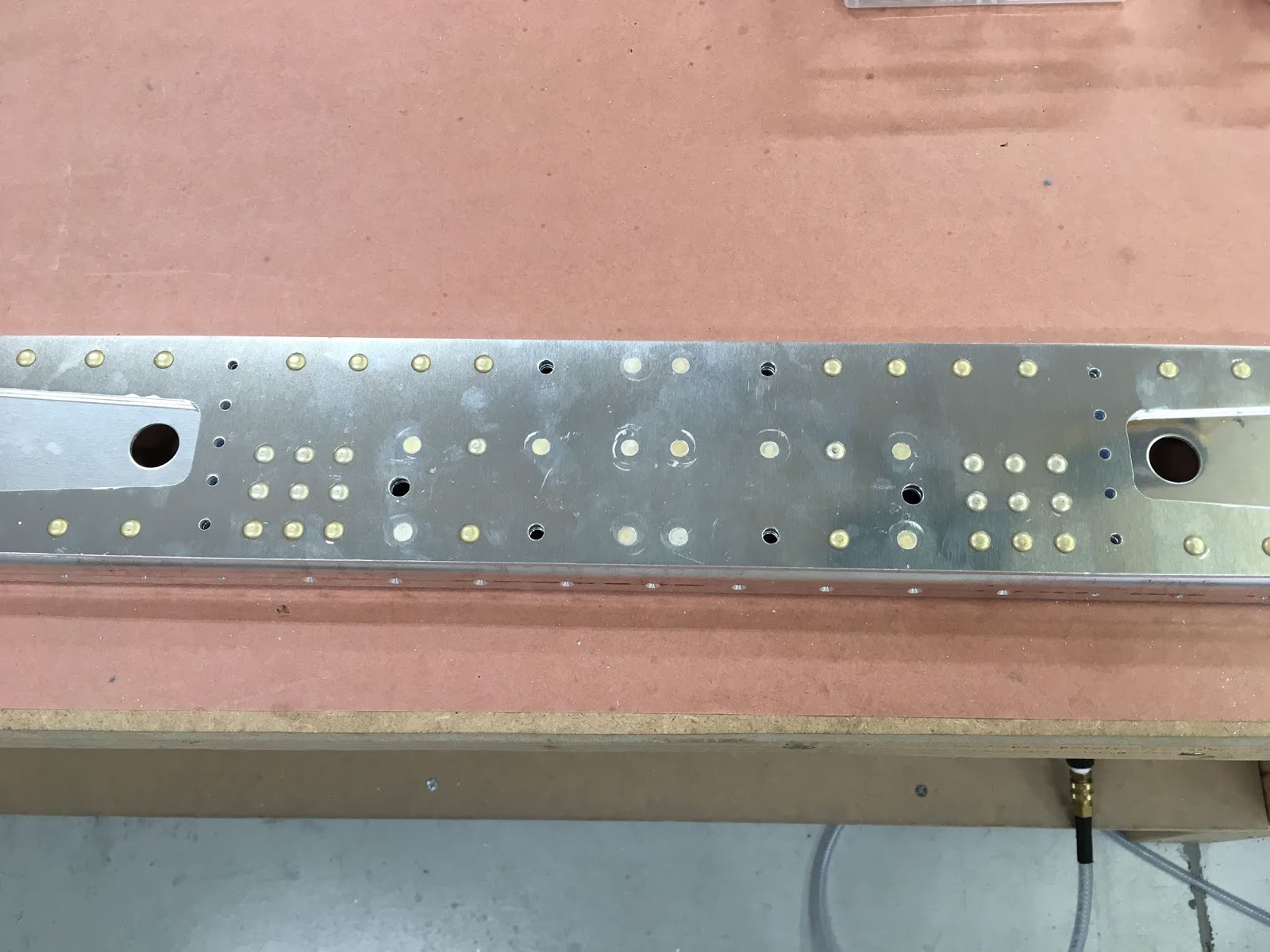

Another couple close-ups of the doubler (front spar):
